ANPR camera with car parking management software system
COMA manufacture automated car parking & access control equipment and provide solution for car access control. The company has more than 20 years experience in the industry of car parking and car access control. With R&D team composed of hardware, software and firmware engineers, COMA is capable to provide flexible product customization service to customers, to confront ever-changing market demands.
ANPR camera with car parking management software system can accurancy 95% or Above.It is widely used in many places,including supermarkets, retail car park, hotels, hospitals and leisure centers.
Benefits
1. Ticketless parking fee management.Increased security
2. Parking access automation
3. Car theft prevention
4. Prevention of “lost ticket”fraud
How ANPR(also known as LPR) car parking system works?
1. Enter procedure
A vehicle stops in front of the entrance, in front of barrier. The sensor detects its presence and a dedicated camera recognizes automatically and records the number plate, date and time of entry. The remote management system captures the data provided by the camera and saves it into the database. If already registered, the subscriber’s membership information and reservation data are a dded. The entrance barrier rises allowing the driver access to the car park. The barrier lowers automatically, once a vehicle passes the safety sensor.
2. Exit procedure
A vehicle stops at the exit, in front of barrier. The sensor detects its presence and the dedicated camera verifies the number plate against payment information, or the listing of the vehicle on the database (e.g. subscribers). The management system validates correct payment, or entitlement to park without payment to enable exit. The exit barrier rises, allowing the driver to leave the car park. The barrier lowers automatically once a vehicle passes the safety sensor.

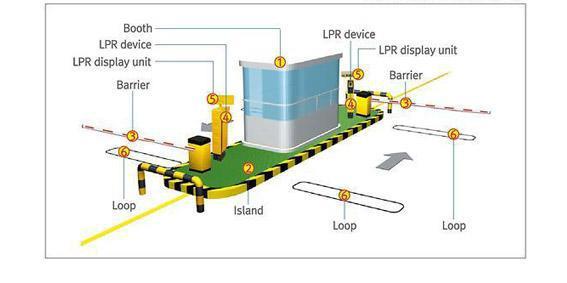

System overview
1 Booth- This structure is the working place for parking attendant . They can manage entering vehicles and collecting parking fee from leaving vehicles here(if pay with automatic payment station,there may be not booth at the exit)
2 Island- Structure for installation booth, barrier and LPR device.
3 Barrier- In order to control entering vehicles efficiently, barrier is installed in heavy traffic area to control vehicle access, at entrance/exit.
4 LPR device- LPR device takes images of entering/leaving vehicles with high-definition mega pixel camera and it recognizes plate number automatically then access control/manage vehicles
5 LPR display unit- Install and link with LPR device, display recognized vehicles' information and note driver information(option)
6 Loop- Loop coil is laid at entry/exit of parking lot.The device receive high frequency signal current from vehicle detector and make a magnetic field near loop coil. Once vehicle pass this field, send impedance changes to detector and convert voltage and amplify them and send detect information signal to camera or barrier gate

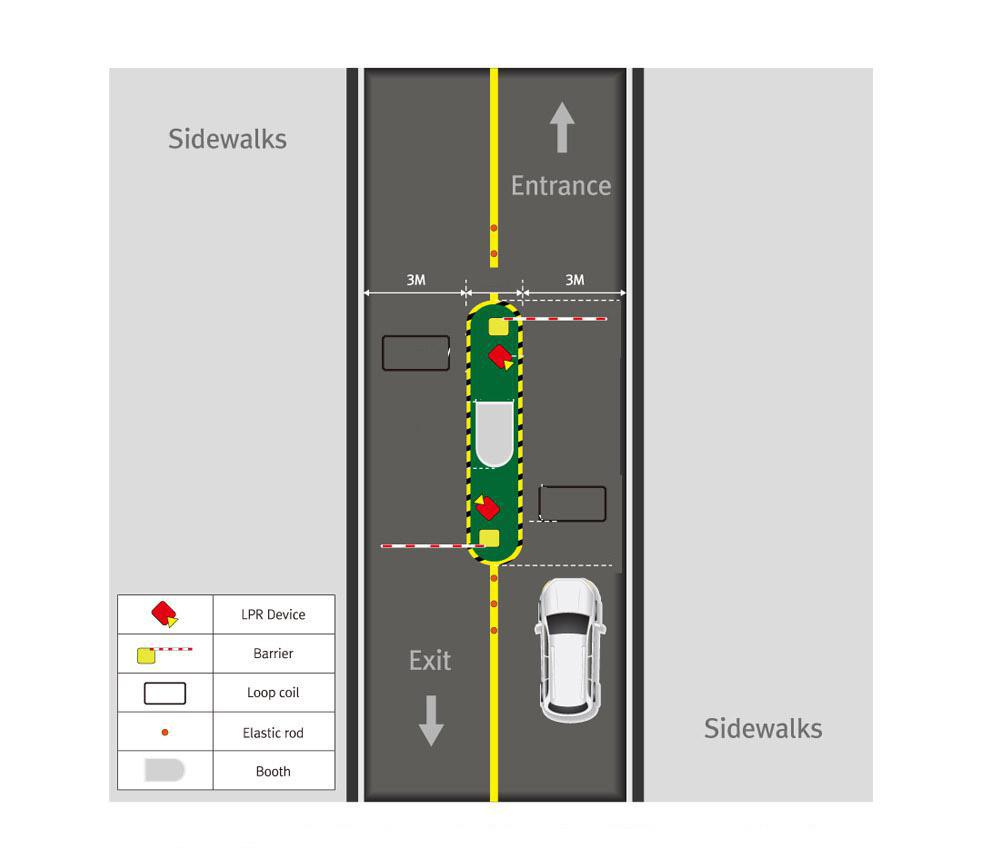

Straight lane is the best type to recognize plate number. and ANPR camera can take an image of max.3.5m width. If ANPR device is installed more than 3.5m road width, vehicle guide equipment(ex.Elastic rod.signboard,etc.)should be installed.In case of installation speed bump the size of bump must be road width. If speed bump size is smaller than road width,driver would not approach straight way to avoid speed bump, then ANPR camera cannot capture clear and
accurate image for recognition,then will affect the ANPR accuracy.

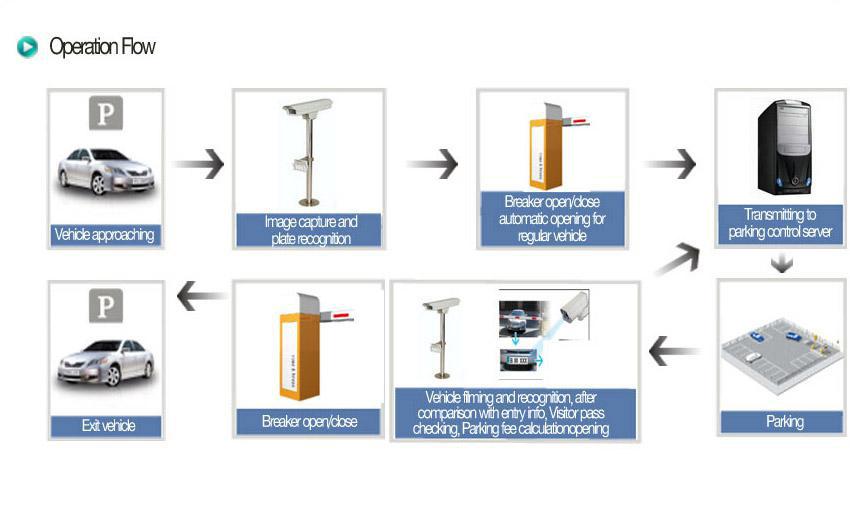

Operation Flow

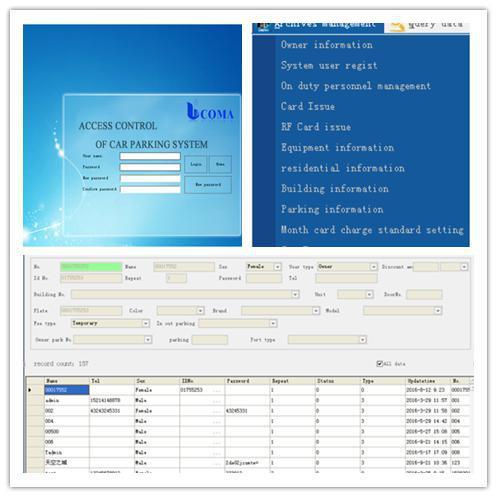

Interface of parking management system software

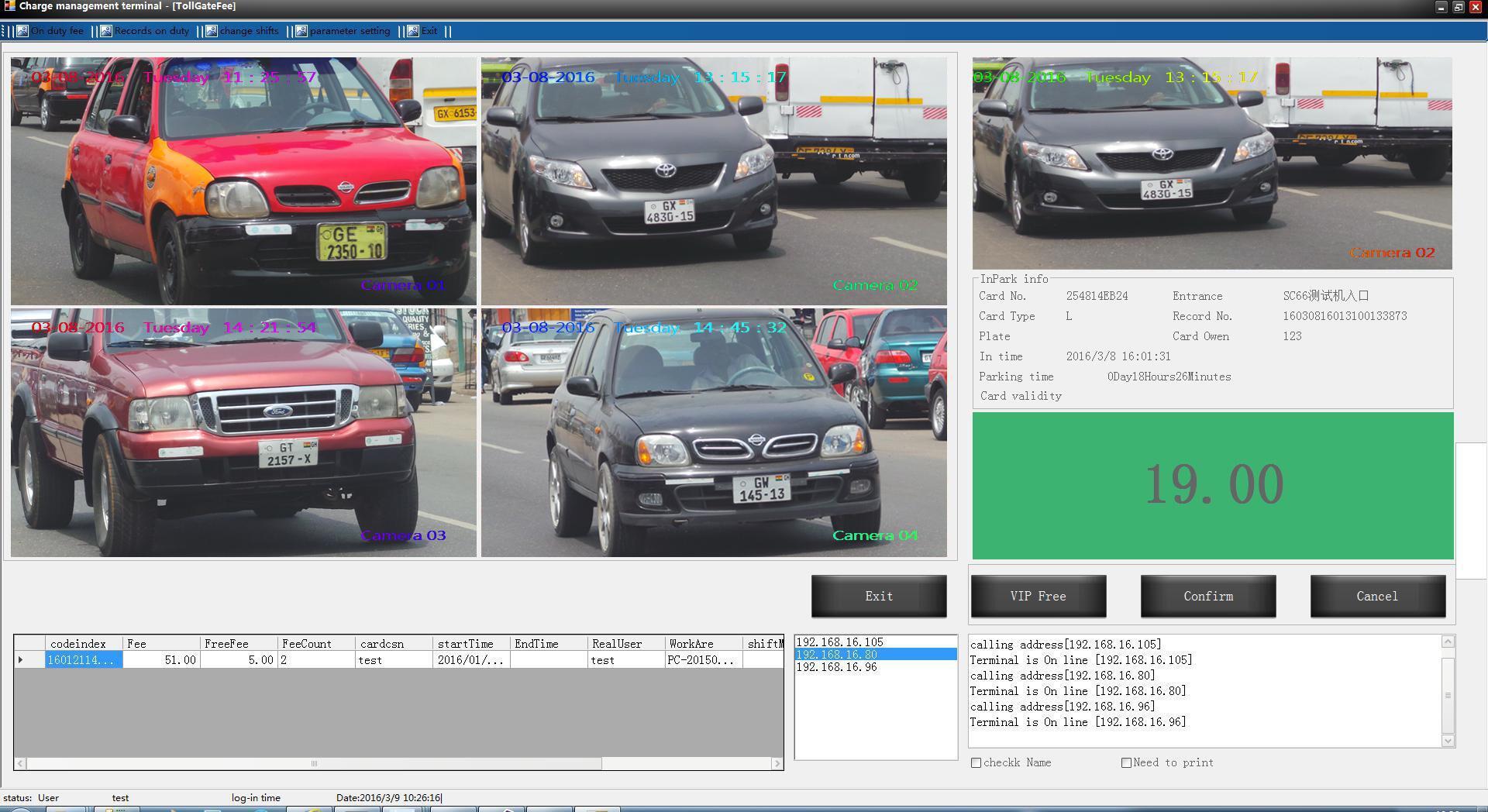

Interface of toll software
Prodution process
Packing Method
