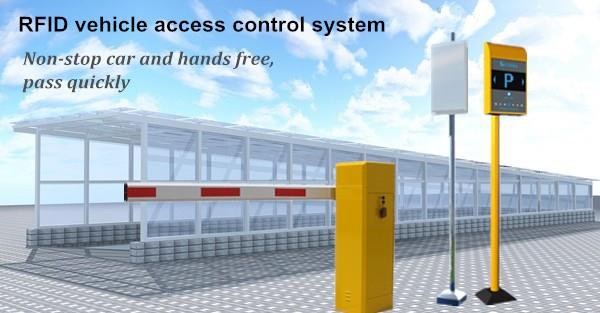

Bluetooth RFID Car Parking Management System Malaysia

Bluetooth RFID Car Parking Management System Malaysia

RFID card parking system allows a non-stop,hands free vehicle access. The system adopts 2.4G blue tooth directional card reading technology with more than 10m reading distance. The parkers do not need to roll down the window or get off to get a card, then there will be no stop at the entrance which can avoid the trouble of entrance peaks and bad weather. The card is 2.4G active card, which will not be affected by anti-explosion film.

Bluetooth RFID Car parking management system malaysia

COMA intelligent parking management systems are popular with international markets. RFID card parking system allows a non-stop,hands free vehicle access.


Coma Non-stop Bluetooth/ Tag RFID Car Parking System




1. Function Characteristic

A. Non-stop parking system, convenient pass the entrance and exit, solve the traffic jam problem.

B. Hommization, no need to shake window brush card, avoid get wet at the rain or strom weather.

C. Safety. Avoid the card slot beside card parking scrape touch phenomenon protection, to enhance safety conditon.


Parameter

Reading distance1-5M,5-10M,10-20M for option
Working moduleOptical excitation positioning, CDMA blue tooth communication, sleep wake-up
Working powerDC12V-18V
4A adapterAC110-220V/DC +12V
Blue tooth power12W
Working frequency433MHZ
Infrared frequency38KHZ
Reading angle60 degree
Tag agreement

CDMA

Interface type

Weigand 26/34 RS232/485

Storage temperature

-45℃- +95

Working temperature

-30℃- +75℃

Relative humidity

Max.95%

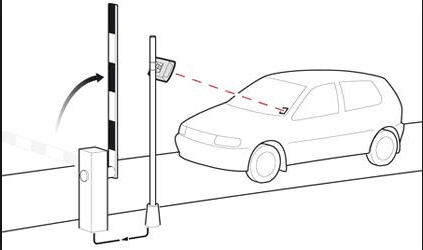

long range parking system



2. long rangepassive rfid tag reader

This parking equipment are two types:

A. Use bluetooth card, the card install in the car. The advantage is longer readerable distance, 3-30m.

B. Use tag, card tag, glass tag, and metal tag. The advantage is suitable for all weather, the readable distance is 3-15m.


RFID

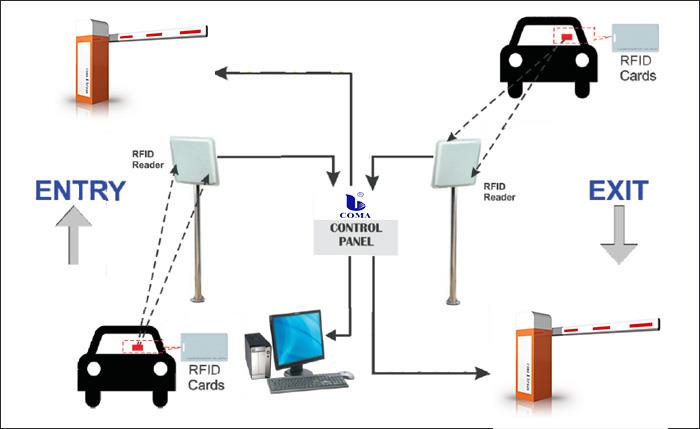

3. How the long range rfid tag reader work

A. Car close to the entrance, the system start work, the reader identify the bluetooth card or tag, the camera catch the car's pictures, if the card or tag is right, the barrier open, the car have non-sop, but pass the entrance.

B. When the car close to the exit,   the system start work, the reader identify the bluetooth card or tag, the camera catch the car's pictures and contrast with the entrance picture, if all are right, the barrier will open.

C. Car have non-stop, but pass the entrance and exit. More safety and convenience.





Company advantage

Advantage


Packing Method

package
