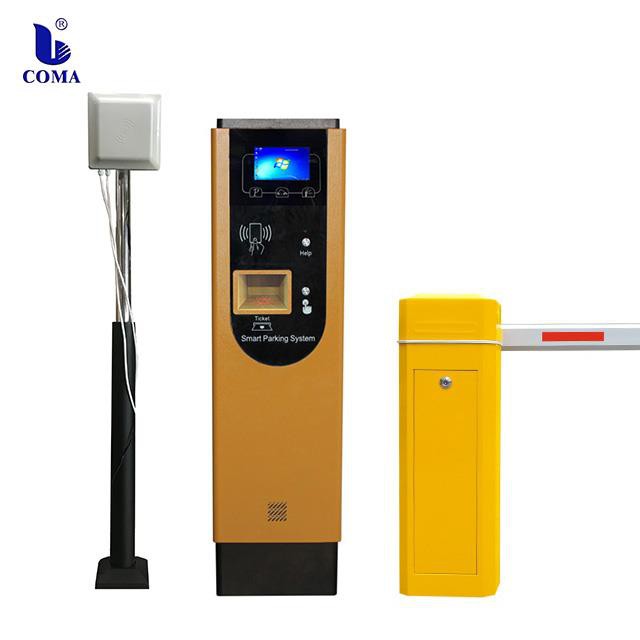

RFID Based Vehicle Access Control Parking ticket Systems
Guangzhou COMA electronics CO.,Ltd is a professional manufacturer in the field of RFID/IC applying systems, including Access Control Systems, Parking Systems, and Passage Management Systems. First class R&D Our company has a strong R&D team which is capable of developing system software and hardware. With years efforts, our brand COMA has been well known both home and aboard. We are ready to serve you anytime, with the hope to cooperate and develop with you from now on.

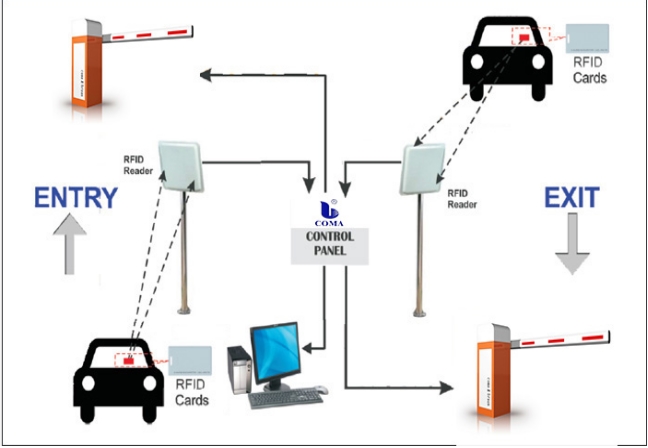

Working process
Entrance
1.LED display gives word welcome and remind driver to enter
2.Voice prompt reminds driver to take a card or ticket ,
3.Driver needs to get a ticket/card from the dispenser in the cabinet, for monthly card holder, he just needs to swipe the card in the reading area.
4.After the driver takes the card/ticket or swiping the card , the barrier gate will automatically open, then the driver can drive his car into the parking lot.
5.When the vehicle detector cannot detect a car's coming, the control cabinet and barrier will never start working, in this case, even a man press the green button, the Entrance cabinet will never dispense a card/ticket.
Exit
1.LED display gives word byebye and reminds driver to leave
2.The card/ticket should be passed to toll collector if there is charge at the exit
for monthly card holder, he just needs to swipe the card in the reading area.
3.After payment, the barrier gate will automatically open, then the driver can drive his car out of the parking lot.
4.When the vehicle detector cannot detect a car's coming, the control cabinet will never start working, the barrier will never open.

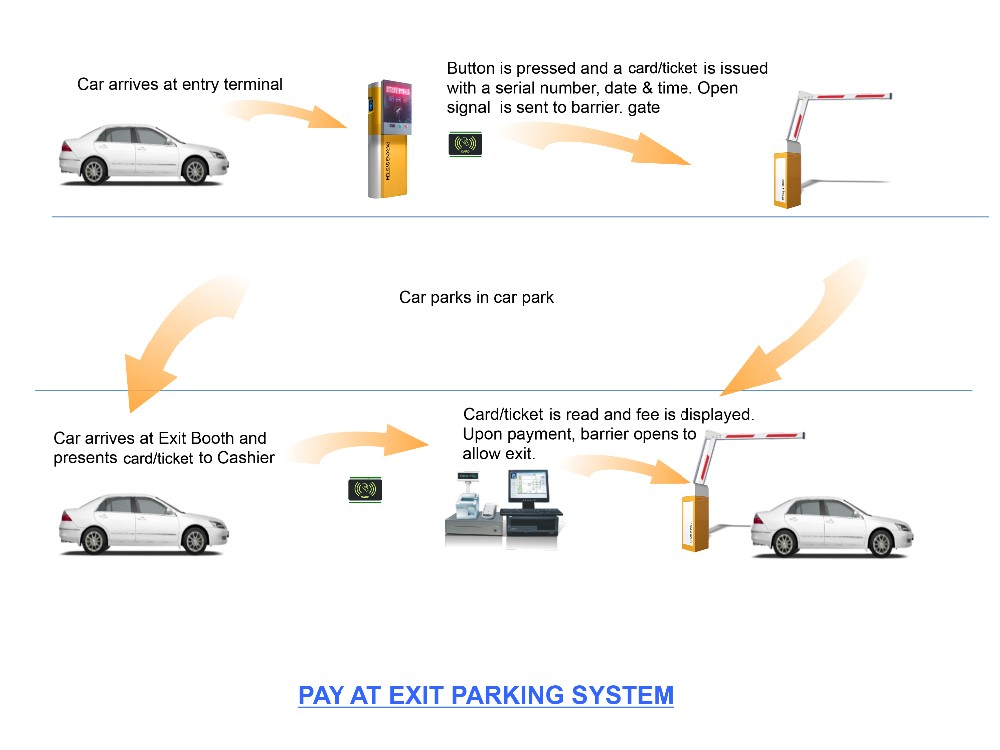

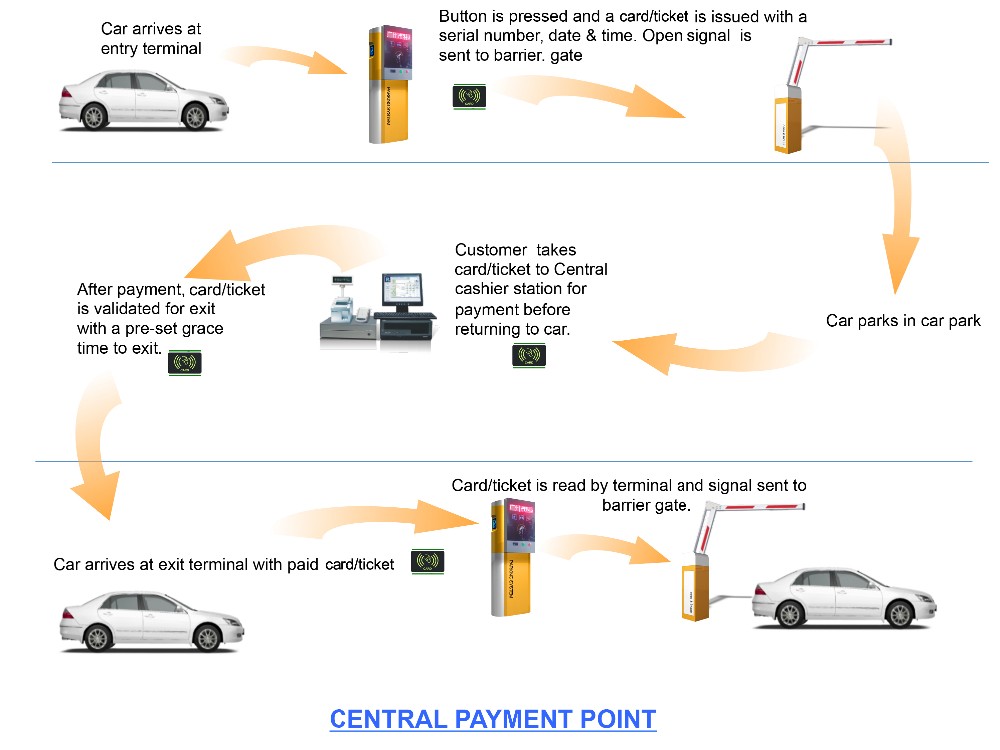

Picture illustrating the process 1) exit payment method 2)center payment method
UHF RFID Reader
Introduction
UHF Reader is a high-performance UHF electronic tag machine, can be widely used in residential area, office building and so on.
Feature:
1. Working frequency 902 ~ 928MHz(can be adjusted according to the requirements of different countries or regions)
2. Work in FHSS or fixed-frequency transmission mode;
3. Output power up to 30dBm (adjustable);
4. 8dbi /12dbi antenna configuration selection, the typical reading distance of 3~5 meters /10 meters ;
5. Support automatic mode, trigger mode and other working modes;
6. Low-power design.
7. Support RS232, RS485 and other user interfaces. Optional TCP/IP network interface.
Please tell below information for working out a solution
1 How many extrance and exit for your parking lot?
2 Do you prefer RFID or ticket parking system?
3 Do you have visitors and long term parker separately?
4 Do you need charging for the parking, if yes, what is the charging standard?
5 Do you have special requirement for the system?
