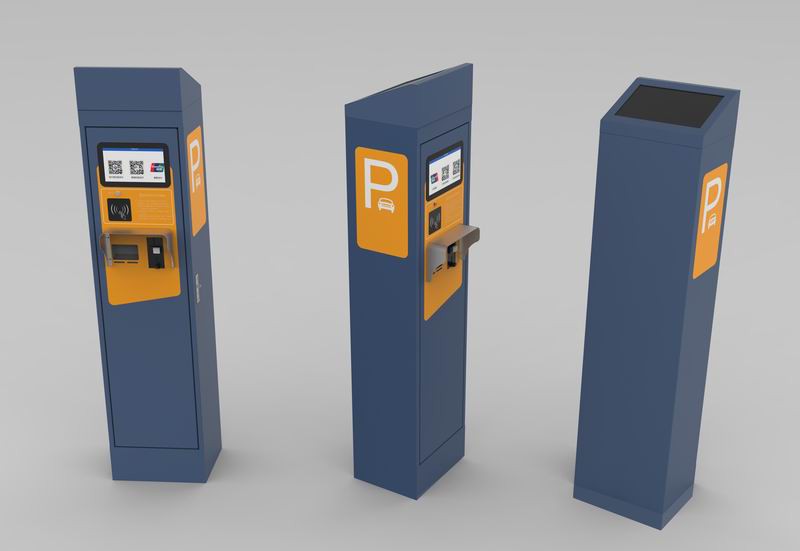

On-street parknig meter, a device to use to manage open area parking, can be powered by solar and electricity, can work solely or with management system,can accept cash or swipe card or mobile payment, can work with magnetic sensor and its gateway,print or non-print ticket
Parking meter is a customize parking equipmnet, the payment flow here is for reference only(acdept coins only), we can help you to design the interface and working flow,also the shape you want.

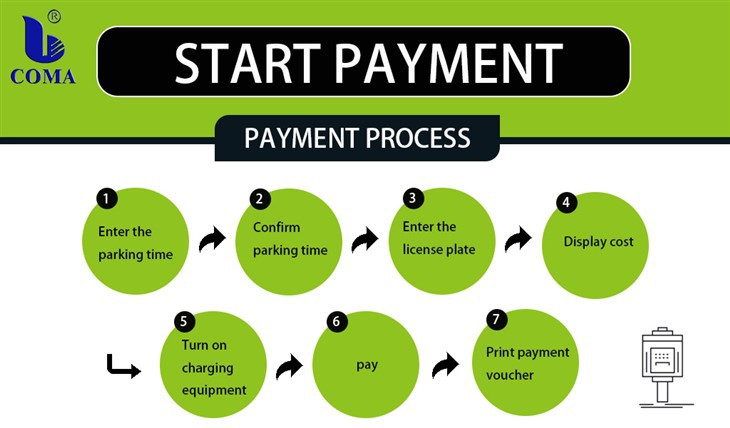

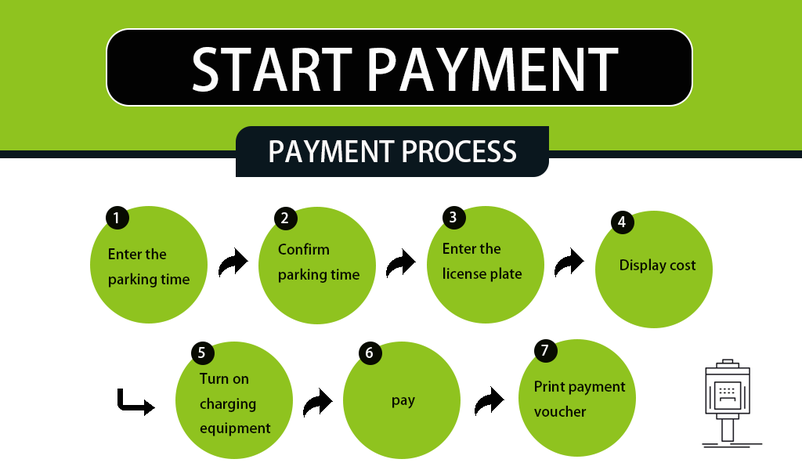

1. Press any key to wake up and start payment process

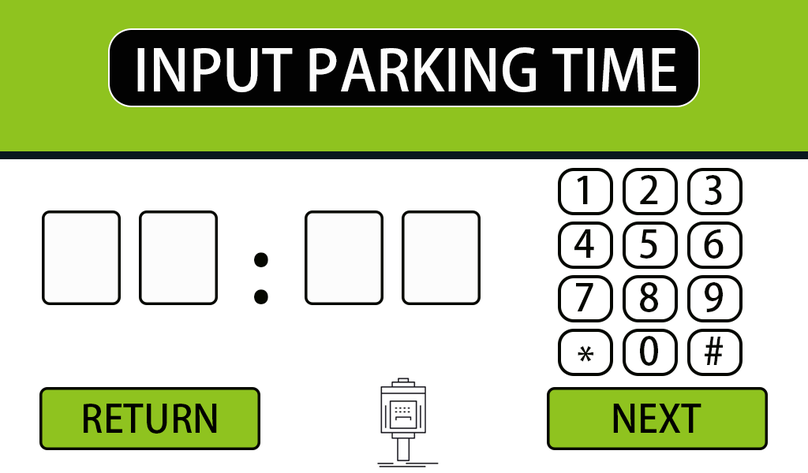

2. Input parking time

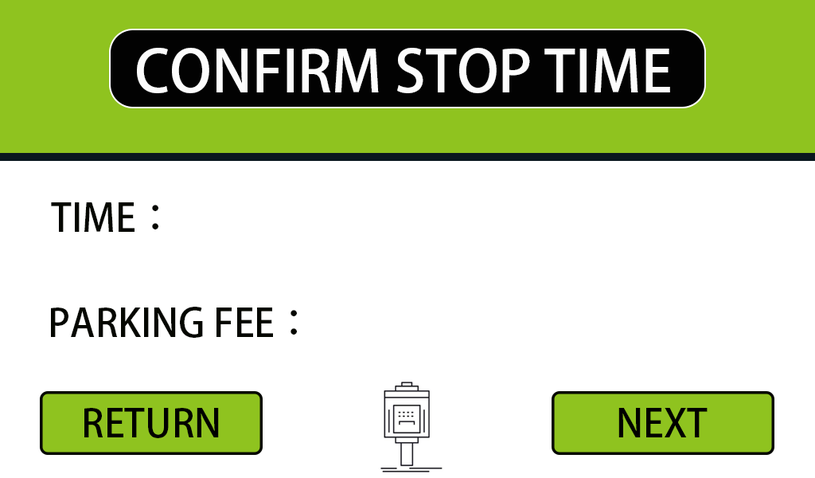

3. Confirm parking time you want

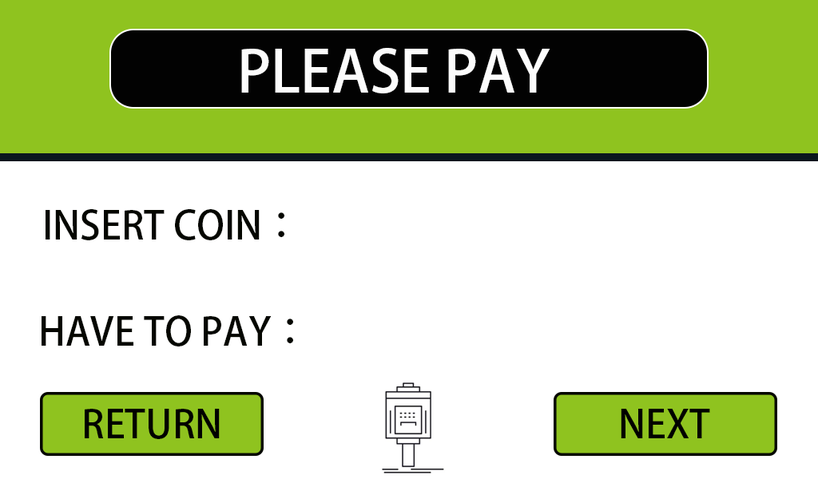

4. Pay

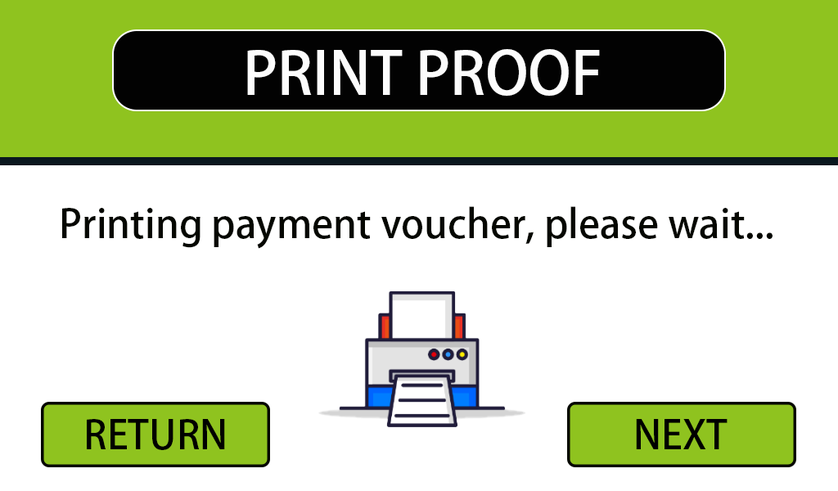

5. Print ticket

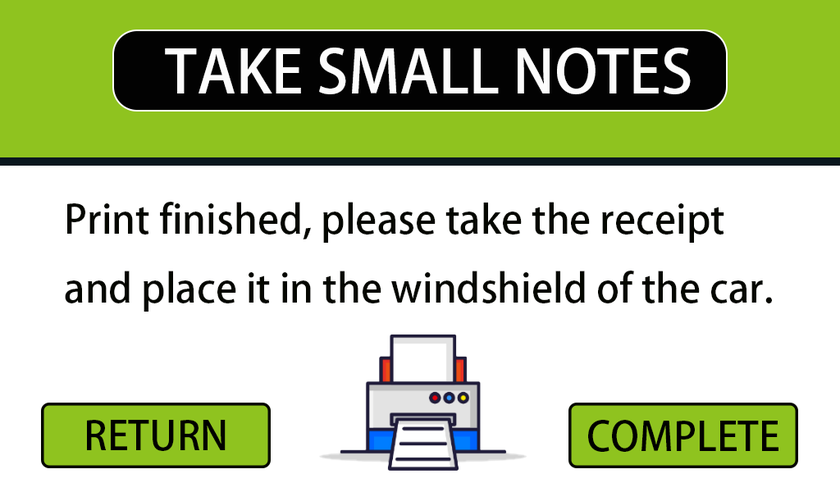

6. Tips
Parameter for reference:
Dimensions(H*W*D):1695*400*300mm
Weight:75-80kg, depend on configuration
Power supply: Solar power,30W， 110V/220V AC 50/60HZ as Backup
Battery operation:12V DC,50Ah
Operating temperature:-40℃+75℃
Relative humidity: Up to 97%
Display:LCD display screen
Come with Keypad, can enter number and letter
Communication: GSM/GPRS/4G,LAN,WIFI(one of them)
Printer: Thermal printer,issuing up to 2,500 tickets per refill
IP class: IP65
