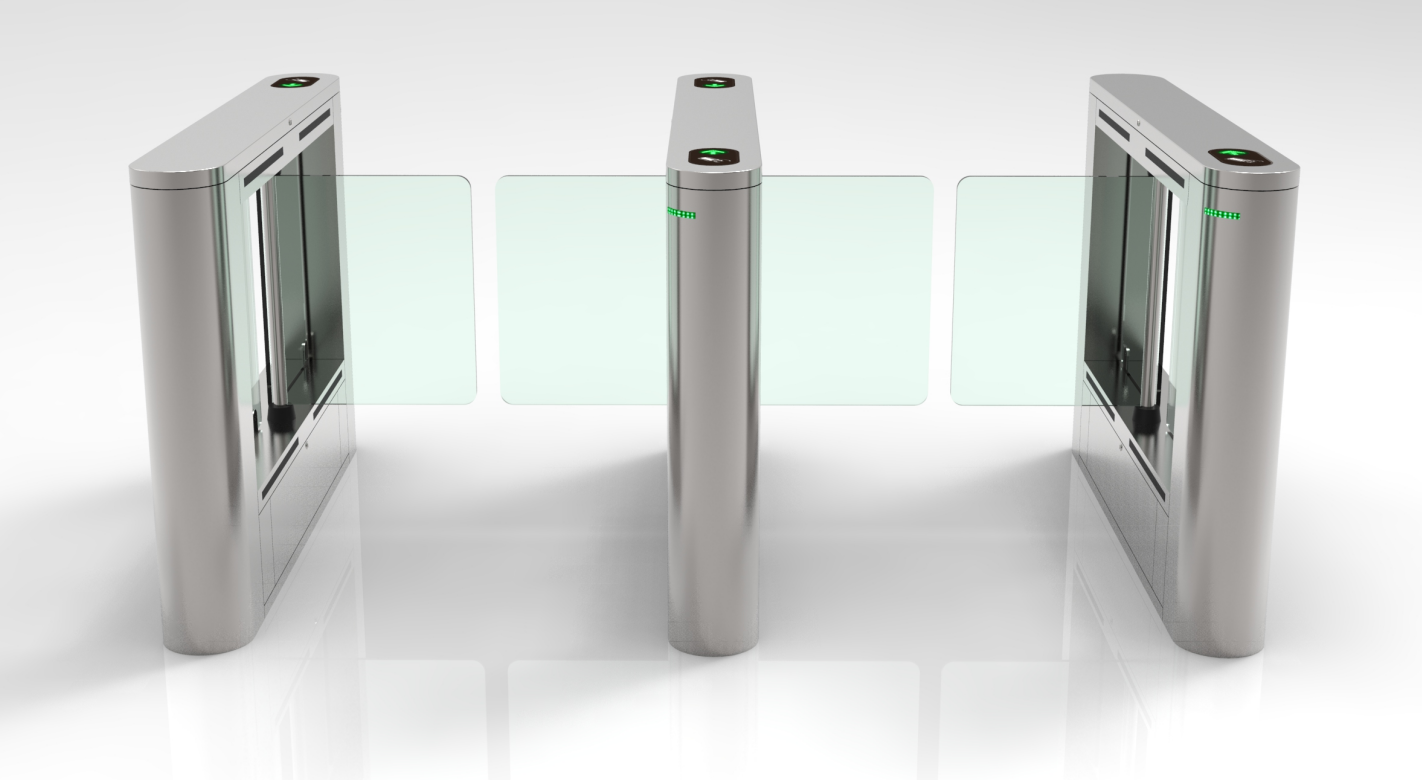

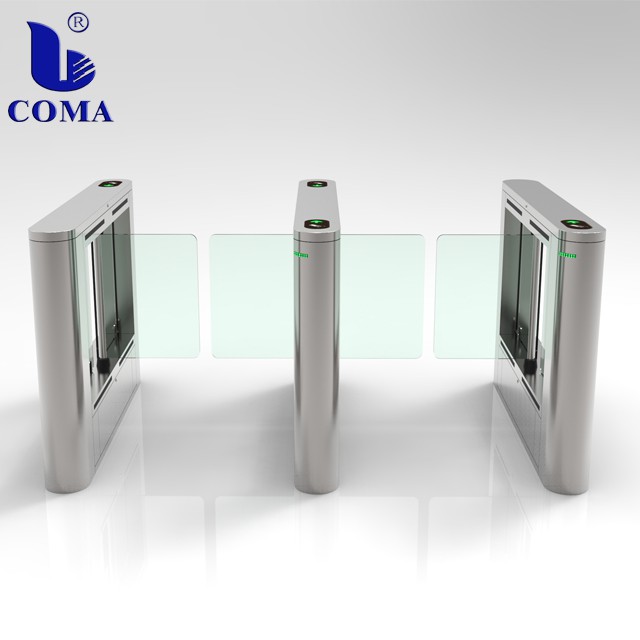

The CM-808T is a single lane swing barrier turnstile series designed for smooth and silent operation and draws very little power. It is made of stainless steel which makes it highly durable.
These barriers are normally held in a locked position, thus denying access to the secured side. Upon CM-808T plus's reader (RFID and/or fingerprint) positively recognizing a user's valid access card or fingerprint, its barriers swing automatically, thus allowing users passage to the secured side.
It provides both security and convenient space, all in a very durable and elegant compact design.
Specifications
|
Power requirements |
AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
|
|
Working temperature |
-28℃~60℃ |
|
|
Working humidity |
20%-95% (Non-condensing) |
|
|
Working environment |
Indoor |
|
|
Speed of throughput |
RFID |
Maximum 30/ minute |
|
Fingerprint |
Maximum 25/ minute |
|
|
Lane width(mm) |
550-900 |
|
|
Dimensions(mm) |
L=1400, W=200, H=980 |
|
|
Dimension with packing(mm) |
L=1500, W=300, H=1100 |
|
|
Net weight(kg) |
120 |
|
|
Weight with packing(kg) |
150 |
|
|
Cabinet material |
SUS304 Stainless Steel |
|
|
Barrier material |
Acrylic Glass or Tempered Glass |
|
|
Barrier movement |
Swing |
|
|
Emergency mode |
Y |
|
|
Security level |
Medium |
|
|
MCBF |
5 million |
|
|
Options/Accessories |
Counter, Remote Control,Access Control |
|
|
IR Sensor |
6 pairs(Customizable) |
|
|
Housing Thickness |
2.0*1.5mm(Top*Housing) |
|

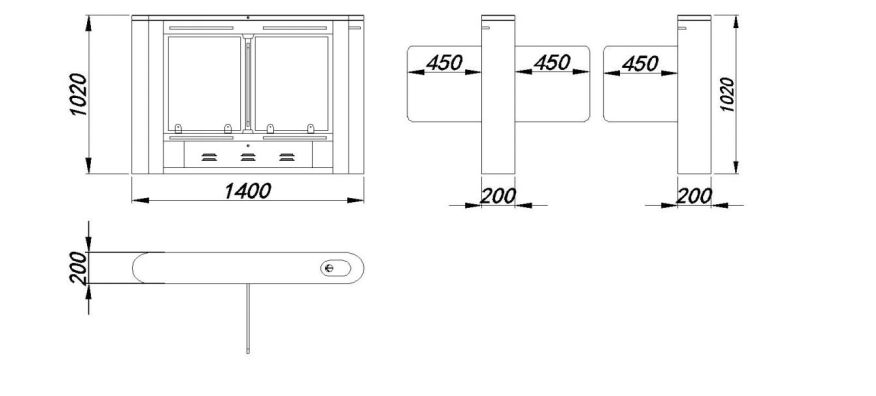

Dimensions (mm)
Features
Reliability
SUS304 stainless steel case ensures long-lasting durability
High quality electrical components Safety Features.
All smooth finishing. No exposed screws.
Ergonomic design makes card and fingerprint authentication fast & simple for users.
Built-in Reader Integration
CM-808T plus series already integrated with customers' preference for either card or fingerprint access control reader which greatly reduces installation time & expenses.
CM-808T series and associated access control readers have passed the factory test before shipment.
Provide the plug&play device with the lowest price in the whole industry.
Simplification
Simplify structure and connection, easy to maintain.
Industrial control board with LCD screen, easy to operate.
