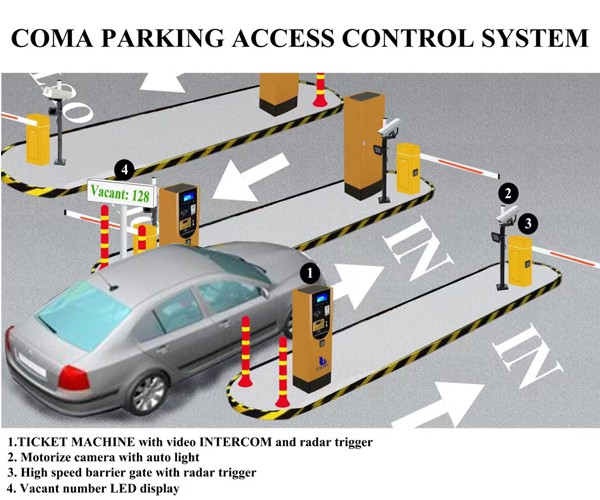

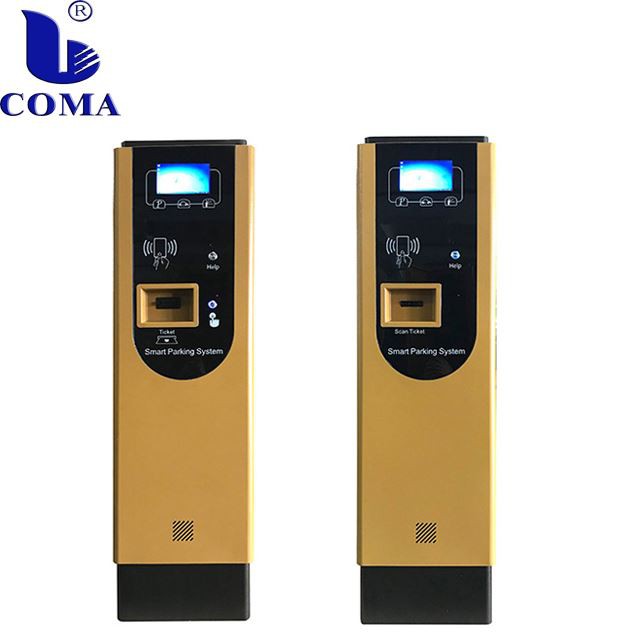

Parking ticket dispenser machine often stands at the entrance of parking lot. It issues ticket printing whenever a radar detects the vehicle and temporary parker presses the ticket button. The ticket usually is a unquie barcode or QR code ticket with entry time date and time. There is a monthly reader on machine panel, which is especially designed for regular parkers, just simply tap a monthly card, barrier gate will lift up automatically.

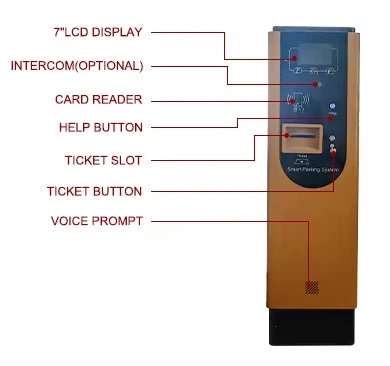

Key Features:
- Cold-rolled steel housing
- Equipment with 7 inch colorful LCD display
- Proximity reader for regular parkers
- Built-in speaker, with English prompt
- Interior modular design, easy to maintainence
- Fast ticket printing speed
- Optional built-in Intercom
- Standard TCP/IP communication protocol
Paremeters:
|
Specification |
|
|
Power supply |
AC 220V±10%, 50/60HZ, Max.1.5A |
|
Environmental temperature: |
-20℃- +50℃ |
|
Humidity: |
10%～95% |
|
Ticket type: |
Barcode thermal paper |
|
Ticket size: |
80mm(L)×70mm(W) |
|
Capacity: |
2000-2500 pcs. ( diameter150mm) per roll |
|
Ticket Cutter: |
high strength, free maintenance |
|
Ticket dispensing time: |
<1s |
|
Card reader Interface: |
1 no. 232 interface |
|
Card Reader type: |
ID or IC card |
|
Card reading and verifying time |
<1s |
|
Reading range: |
5-10cm |
|
LCD Display: |
7 inch TFT resolution 480×800 Brightness: 400 cd/㎡ Contrast: 500:1 |
|
Intelligent Control Unit: |
J1900 4-cores, 2.0G |
|
With Real time Calendar Clock |
|
|
Multi Rs232 interface |
|
|
Multi 0-5V On-Off input |
|
|
Multi Relay output |
|
|
DC-DC Electrical Isolation CAN interface, compatible with Peli CAN2.0B |
|
|
Lightning protection circuit |
|
|
Dimension (mm) |
520*300*1450 |
|
Net weight: (KG) |
45 |
|
Gross weight: (KG) |
55 |
