Automatic Tickert System Car Parking Equipment Manufacturer

Automatic Tickert System Car Parking Equipment Manufacturer

COMA manufacture automated car parking & access control equipment and provide solution for car access control. The company has more than 20 years experience in the industry of car parking and car access control. With R&D team composed of hardware, software and firmware engineers, COMA is capable to provide flexible product customization service to customers, to confront ever-changing market demands.
Send Inquiry
Download

Automatic tickert system car parking equipment manufacturer


COMA Strength

  1. Over 20 years' experiences in parking

  2. 10 year gold supplier in Alibaba platform

  3. OEM&ODM order are welcome

  4. Excellent  integrated solution provider

  5. Strong R&D capacity

  6. Stable quality and reasonable price

Ticket system（1）

Automatic tickert system car parking equipment, is applied to parking lot with a lot of visitors. The visitor presses the button to get a bar code ticket, then before leaving, visitor passes the bar code ticket to the toll collector for scanning. After scanning, the parking fee is shown on the computer. After payment, the visitor is allowed to leave.



Parameter



Automatic tickert system car parking equipment
Environmental temperature:-40℃- +75℃
Power consumption:120W
Power voltage:110V/220V,AC,50HZ
Applicable scope:IC card,EMID card,Paper ticket
IC/ID reads and writes the distance:8-15 cm
Offline data storing capacity:2000 (can expand)
Ingress Protection :IP54
Certificate :CE, ISO9001:2000, the design of the case is our patented product
Card dispenser capacity:250-450 pieces
Communication port:RS232,RS485,CAN
Surface handle :important (spray)
Control Case material: A3 steel
Control Case thickness:1.5mm
Control Case appearance treatment:imported paint baking

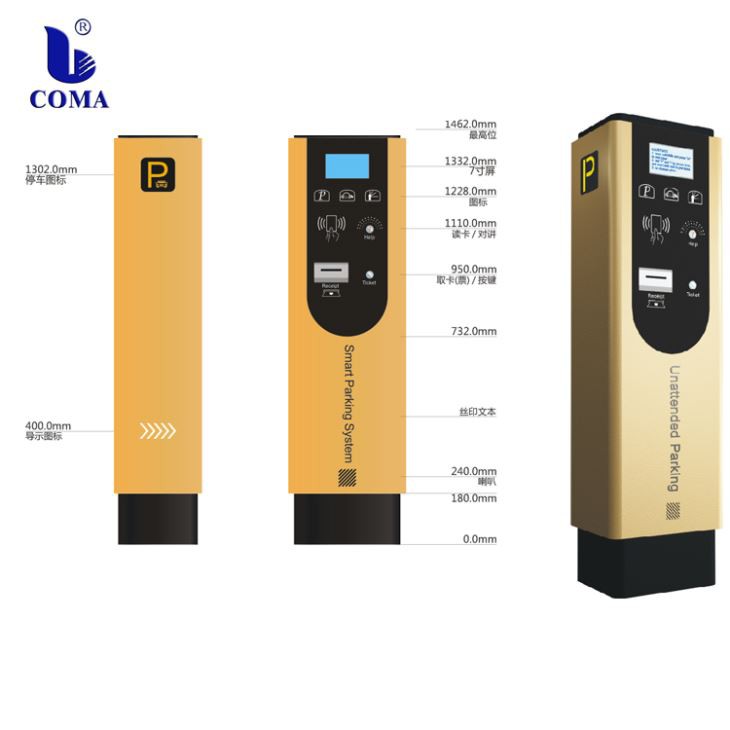

Case size:415*210*1462 mm
display screen:7''inch LCD screen



Working process


Entrance



1. LED display gives word welcome

2.Voice prompt reminds driver to take a ticket,

3.Driver presses the button to get a bar code ticket in the entrance ticket machine.



4.After the driver takes the ticket, the barrier gate will open automatically, then the driver can drive his car into the parking lot.

5.When the vehicle detector cannot detect a car's coming, the control cabinet and barrier will never start working, in this case, even a man press the green button, the entrance ticket machine will never dispense a ticket.

Exit



1.LED display gives word to driver



2.The ticket should be passed to toll collector if there is charge at the exit.



3.After payment, the barrier gate will open automatically, then the driver can drive his car out of the parking lot.

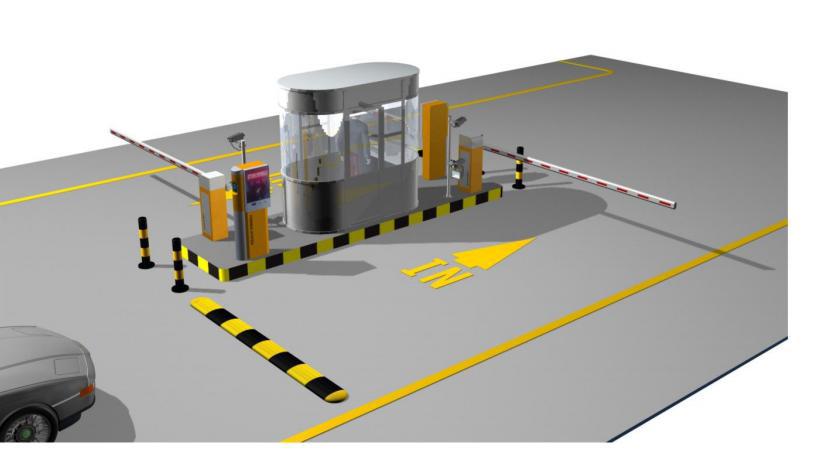

Picture illustrating the process 1) Exit payment method 2)Center payment Method

Ticket system（2）


The toll station software and backend  software



Toll station software



For the toll station software 1) the toll staffs log in, operate and charge the parking fee .2) the toll staffs can set equipment which needs management. 3) the toll staff can check the current paid up amount records.


Backend software



The manager can log in and issue card,operator management,Query of the access record,download data, charging standard setting ,system configuration, etc.

Prodution process

process

Packing Method

package
