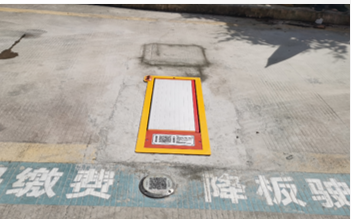

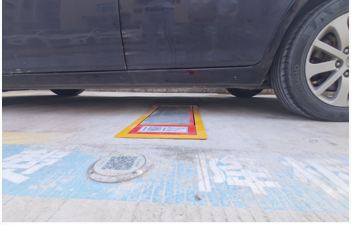

Flat parking locks, also known as embedded parking locks, are security locks installed underground, commonly used in parking lots, residential entrances, and private parking spaces. They control vehicle access via a rising and lowering locking bar and feature anti-theft, anti-vandalism, and waterproof characteristics. Made of high-strength alloy material, in-ground locks possess strong weather resistance and pressure resistance, making them suitable for long-term outdoor use. Their high concealment does not affect the aesthetics of the ground, making them an important component of modern intelligent parking management systems.
Main Advantages

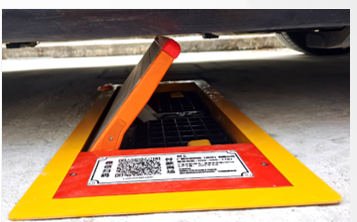

No Contact with Chassis
Ultrasonic ranging + gyroscope angle sensing-accurately detects vehicle chassis height, intelligently controls flap position, maintains a safe distance from the vehicle, achieves zero chassis contact, and eliminates scraping risk.
Proprietary Brushless Motor
Reduces failure risk from brush wear, minimizes fault points, significantly extends service life, and enhances overall system reliability.

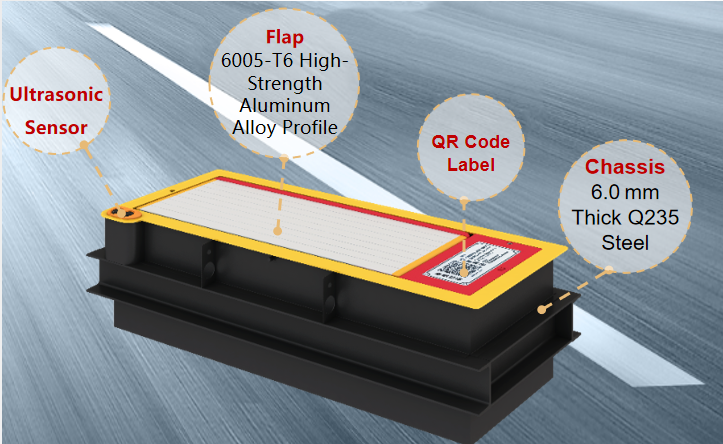

One-Piece Die-Cast
Made of 6005-T6 high-strength aluminium alloy, one-piece cast, highly corrosion-resistant, with over 30% improved impact resistance.

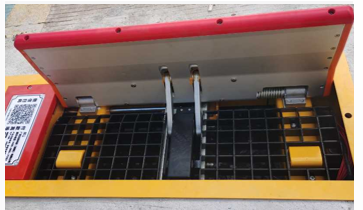

Flap Cover Grid Design
Innovatively uses a grid base plate with a recessed integrated waste compartment, actively directing water and small debris into a designated collection area for integrated "drain, collect, and clean" functionality.
Parameter of embedded parking lock
| Item | GP150-L Embedded Type |
| Battery Specifications | Lithium Battery Pack DC14.8V/14.5Ah |
| Operating Voltage | DC12V~18V |
| Motor Specs | DC12V/30W |
| Communication Method | 4G + Bluetooth |
| Detection Mode | Dual-mode: |
| Ground Sensor + Embedded Liquid Detection | |
| Standby Time | ≥10 months |
| Voice Prompts | TTS (Text-to-Speech) |
| Speaker Power | 2W |
| Lift Time | ≤8 seconds |
| Drop Time | ≤8 seconds |
| Water Level Detection | Non-contact |
| Protection Level | IP68 |
| Operating Temperature | -25°C to +65°C |
| Environmental Humidity | ≤90% |
| Atmospheric Pressure | 86~106 kPa |
| Dimensions | 872mm × 336mm × 150mm |
| Max plate Height | 205mm |
| Max Plate Angle | 75° |
| Max Load Capacity When Lowered | 10 tons /10,000 kg |
| Service Life | 10 years |
