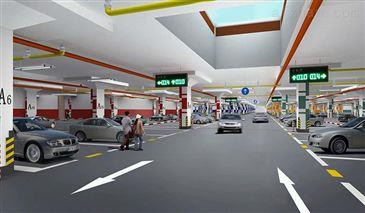

COMA Car Parking Guidance System Ultrasonic Sensor

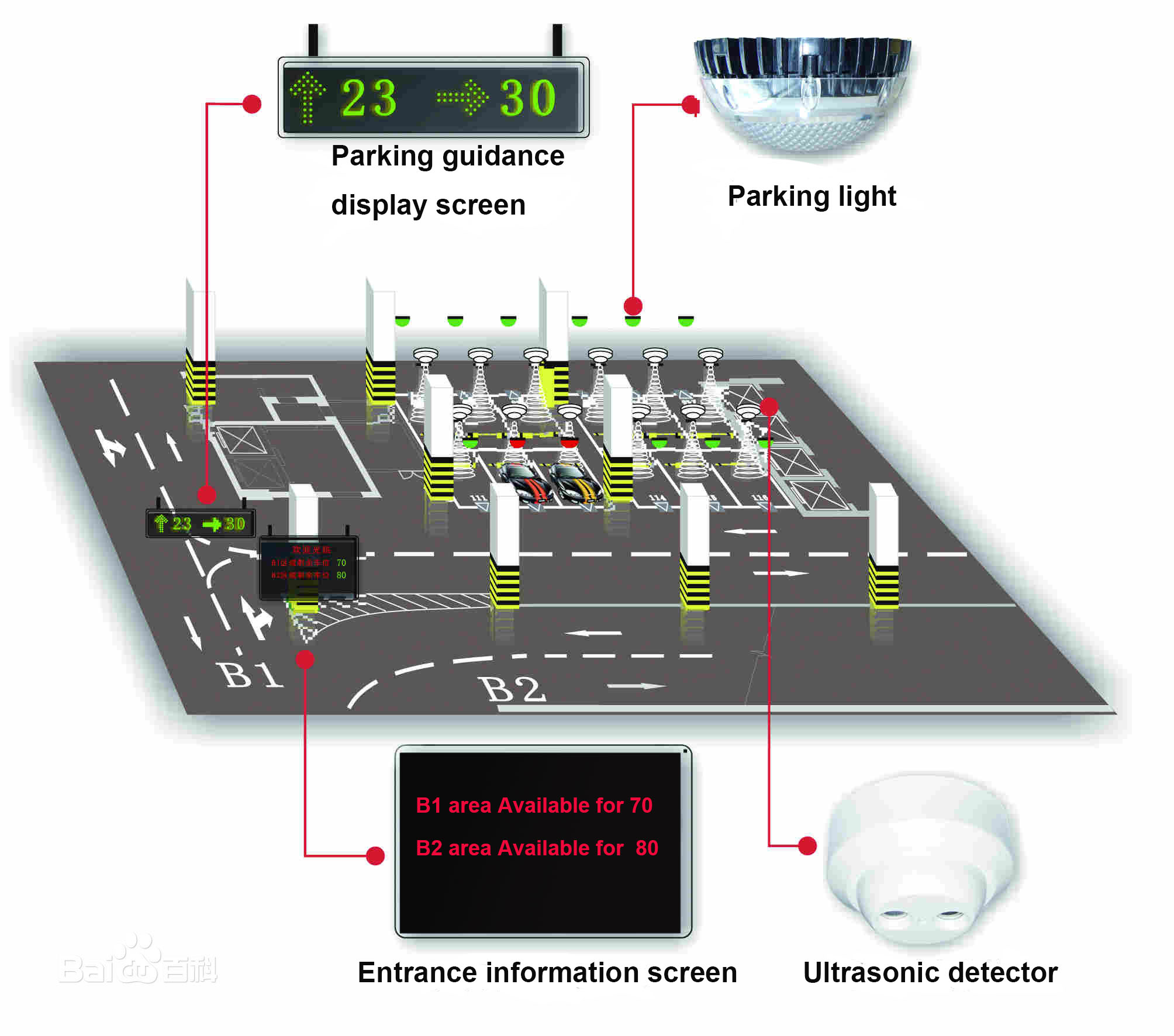

Car Parking Guidance System Components:
1) . Ultrasonic 2 in 1 Parking Lot Detector.
Ultrasonic detection unit install at the front of parking space to monitor presence of vehicle and provides real-time information to PGIS system.
Built in High brightness soft light LED indicator, 2 function in 1 product, Red Color indicates space occupied, Green Color indicates available. Save product cost and construction cost for you.
It is mainly used in indoor parking lot parking status detection. (Outdoor parking lot detector and wireless parking lot detector are also available).
Parking Lot Detector consists of 2 parts: Detector and Pedestal（Free）.
Operation voltage | 18-30V,Recommend:24V | |
Power consumption | 0.5W | |
Operating principle | Ultrasonic measuring | |
Detecting range | 50cm-420cm | |
Communication mode | RS485 | |
Dimension | Φ130*80mm | |
Operating temperature | -20 to +50 degree | |
Typical Current | Red light: 65mA, | Green light: 56mA |
Application | Indoor hoisting | |
Mounting | Hoisting | |
Uplink | Uplink to Region Controller RCM standard series | |
2). Region Controller Module(RCM)
Region Controller Module is the third layer of the Three-Layer network in the Parking Guidance Information System (PGIS), which play an important role in ensuring the system’s security, reliability and efficiency. RCM down link Parking Lot Detector, Display screen, Guidance Arrow, etc. It can manage 0-64pcs terminal equipment( 0~64pcs detector, 0-16pcs LED display). Cycle detect the status of detectors and transmit related information to SCM.
3). Section Controller Module(SCM)
Section Controller Module is used to collect data of Region Controller and forward the data to Master Controller. SCM is the second layer of the Three-Layer network in the Parking Guidance Information System (PGIS). It can manage 8pcs Region Controller Module.
4). Guidance Controller Module( GCM)
Guidance Controller Module is installed at central control room, using embedded micro computer. It is the first Layer of the Three-layer network in parking guidance system, GCM can accomplish the whole system equipment controlling, data collecting, handing and issuing. Guidance Master Controller can off-line to run independently. It can manage 16pcs Section Controller Module.
Data Collector serves as a bridge commenting center processor to Ultrasonic sensors and LED Display. It picks up sensor information and transfers to center processor and also helps to transfer availability information from center processor to LED Display.
COMA provide professional Ultrasonic Sensor Car Parking Guidance System to customers.
