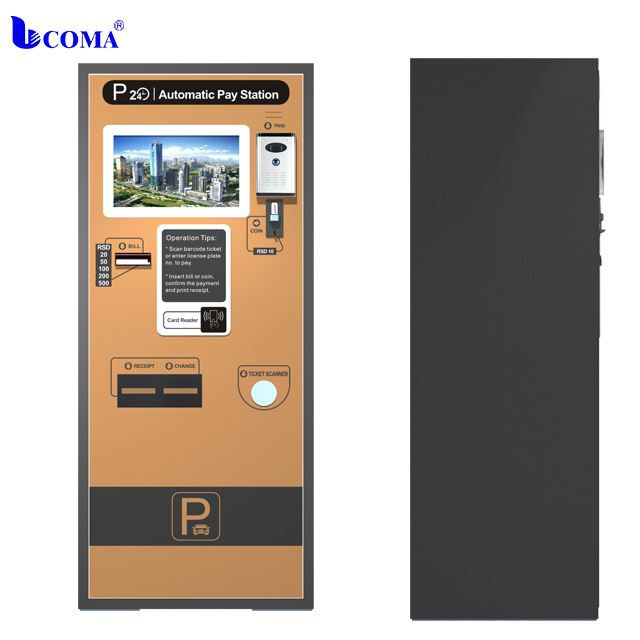

Parking Payment Machine Auto Pay Station with Change Given
Automated payment machine, or can also be called auto pay station, pay on foot station, or pay and display machine, is set up on the way to parking lot exit or other proper location.
• It offers self-service of parking fee collection to drivers.
• It also provides auto,humanized and safety management to parking lot
The auto pay station can accept bill, coin, bank card or other value card.and support mobile payment. It can also give change in coin or bill if you required.
On each side of the pay station, there is 19" advertising screen. The parking lot manager can gain revenue from the 24 hours broadcasting advertising.
Technical parameter
| Auto pay station Size: | L*W*H 660*660*1800MM |
Case material | A3 steel,T-2.5MM |
Case appearance treatment | Imported paint baking |
Weight | 130KG |
Data storage capacity | 8G |
Card reading distance | 5-10cm |
Communication interface: | TCP/IP |
IP | IP54 |
Voltage | 110V/220V AC 50HZ |
Power | 120W |
Working temperature | -20℃- +60℃ |
Software language | English |

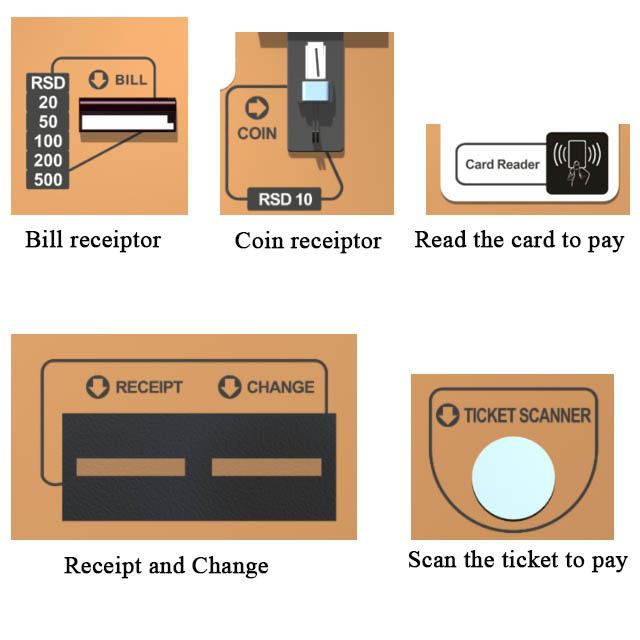

Operation Process
1.Scan the barcode ticket or read parking card which is dispensed at the entrance machine. If it is LPR car parking system,just input your license plate number for payment.
2.The 22" HD LCD touch screen will show how much you need to pay.
3.Pay as the machine 's payment methods. You can combine several payment methods to pay parking fee.
4.Receipt is printed after payment. The car parking system allows 5-15 minutes for leaving the parking lot after payment. The time can be set by yourself.
5.Scan the bar code ticket or reading parking card at the exit machine, then the barrier will open automatically. If it is ANPR car parking system, you can leave the parking lot without stop.
Working with different car parking system.
It can work with entry ticket car parking system, ANPR car parking system, RFID card car parking system, parking flap barrier for parking payment enforcement.
Product details
Production site
